Miller No30E Tail Lamp - documentation of an NOS tail lamp - PR19
 Notes

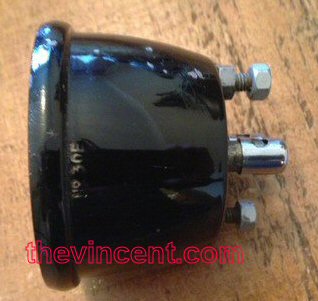

NOS Miller No30E
notice the cad or zinx plate on the lens wire.
the thickness of the wire.

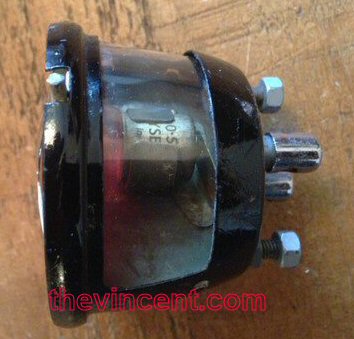

clear lens on license window.

notice the stamping direction, font , size.
thickness of the nuts.
plating on the wire stud caps.

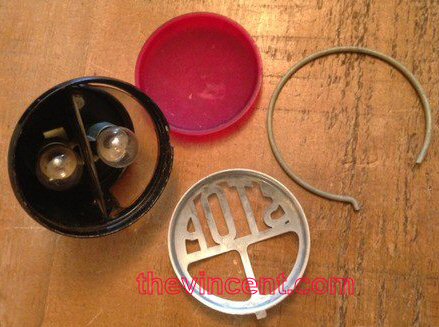

note clear window.
wire tail size.
nuts.
plating.

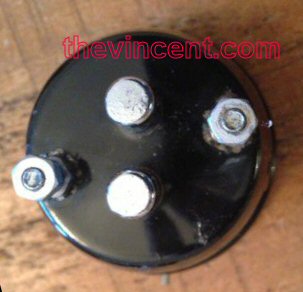

tail lamp mounts with wire studs vertical,
which means lamp mounts are at
2 O'clock and 8 O'clock.
note wire at bottom.

note  - cut outs
wire thickness
wire plating










Commonly called a Miller 6½", this Miller head lamp is actually cataloged as a Miller7"

 Miller 7" LAMPS
Headlamps Type 74CV. 74E. 77CV. 73EI
Type
 Description
75V/832 Ammeter
S.101
 Front Rim
S.102F
 Moulded Glass 6½" dia
S.103
 Kautex Washer
S.105
 Glass Fixing Wires (set of 4)
S.106
 Reflector less Bulb Holder
S.106B
 Bulb Holder
S.109
 Lamp Body for Switch and Ammeter
S.77
 Lamp Body for Switch and Warning Light only
S.110
 Lamp Securing Bolt and Washer (2 of each) per set
S.133
 Ammeter Rubber Ring
S.136
 Ammeter Fixing Bridge
S.137
 Ammeter Securing Nuts & Washers (2 of each) per set
#200
 Pilot bulb 6v, 3watt S.C.C. 18mm
BA15s base, Lucas #200
#168
 Headlamp bulb 24/24 watt S.B.C. 38mm
BA15d base, Lucas #168
S.B.C. - Standard Bayonet Cap
S.C.C. - Single Center Contact
B.P.F. - British Pre-Focus
MES - Minature Edison Screw
Description
 Notes

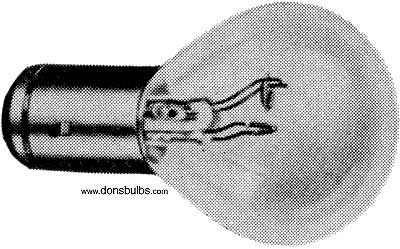

Lucas #168
BA15d

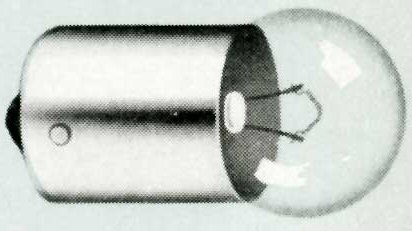

Lucas #200
BA15s
Commonly found  Miller Replacement Headlamp for Vincent - Miller # 179CV

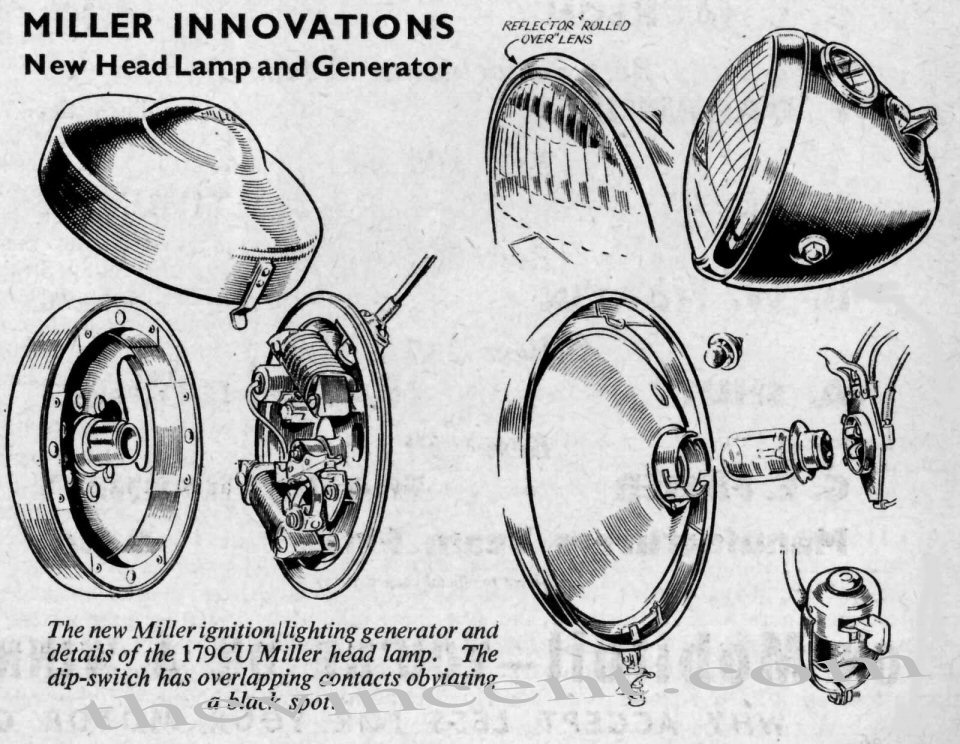

1954 magzine ad to show graphic version of new Miller headlamp. Please note sealed lens/reflector, pilot at top position, no hole for light bleed to ammeter.
Incorrectly label as 179CU should be 179CV

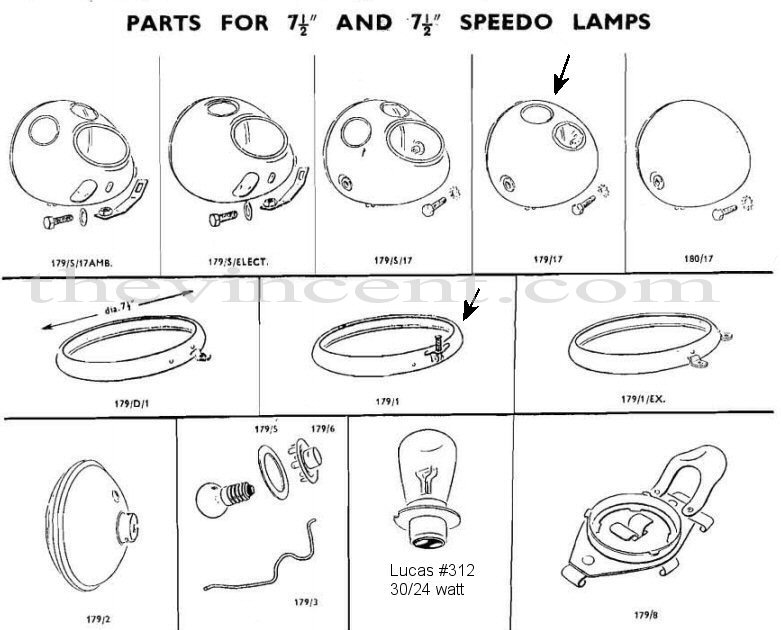

Page from Miller catalog with parts picture for 179CV and other versions of same

179CV Bulb information
Description
 Notes

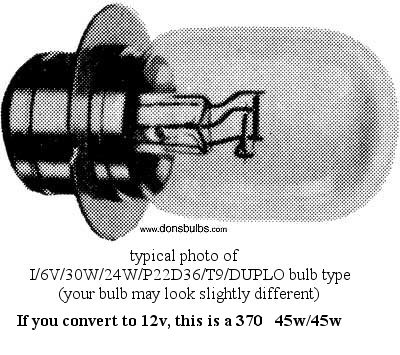

Headlamp bulb for 179CV

Lucas 312

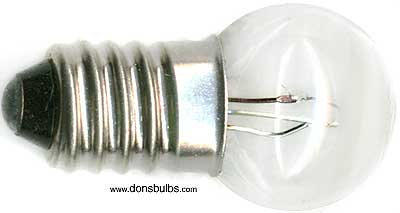

Pilot lamp bulb for 179CV
E10 base, 6volt, 2-3watt
#CEC40
#1482
http://www.donsbulbs.com
Lucas horn tone disc dimensions - 700213
OD - 2.67", ID bore - 0.57", Thickness - 0.095", Material - aluminum sheet, Paint - wrinkle black

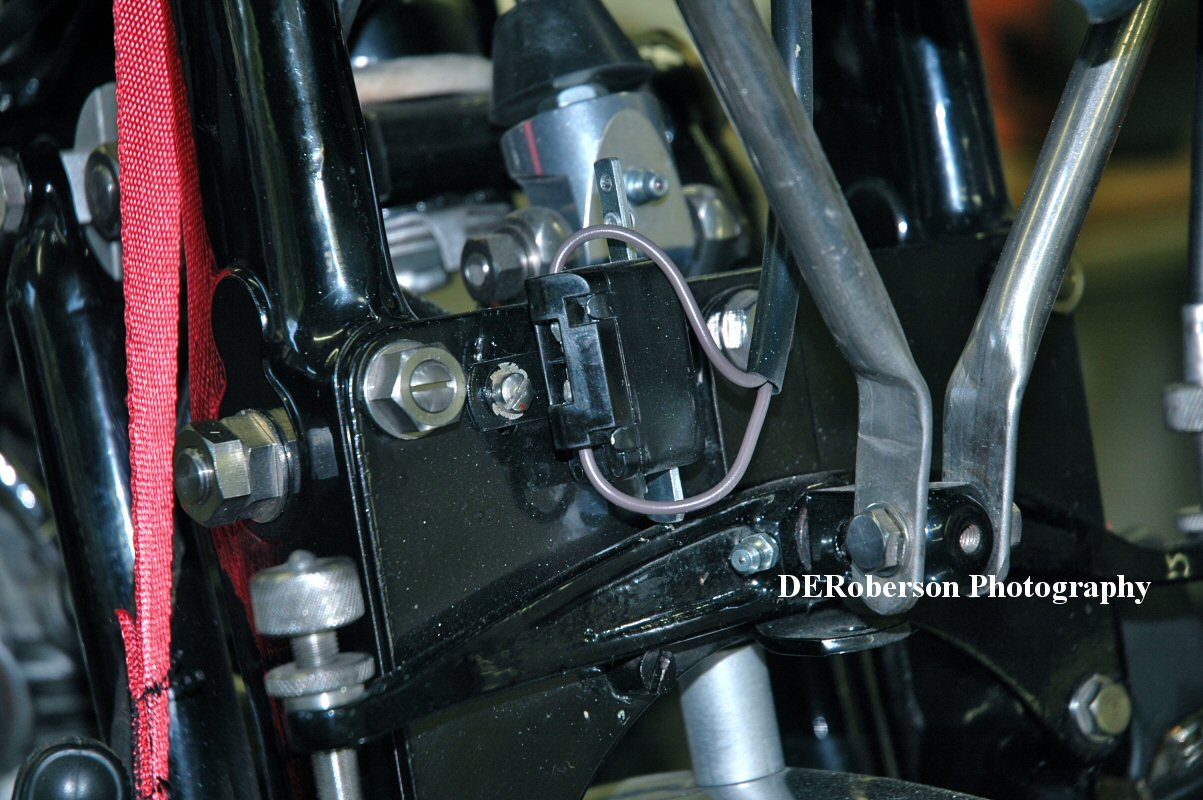

Add a front brake switch to illuminate rear brake light when applying front brake -
D series Vincent added a Lucas switch to the fork plate FF32 and wiring to suit. As you apply front brake, the balance beam comes up on right side and activates the Lucas switch. Normally these Lucas switches are pulled to activate, but this time it is used in push mode.
