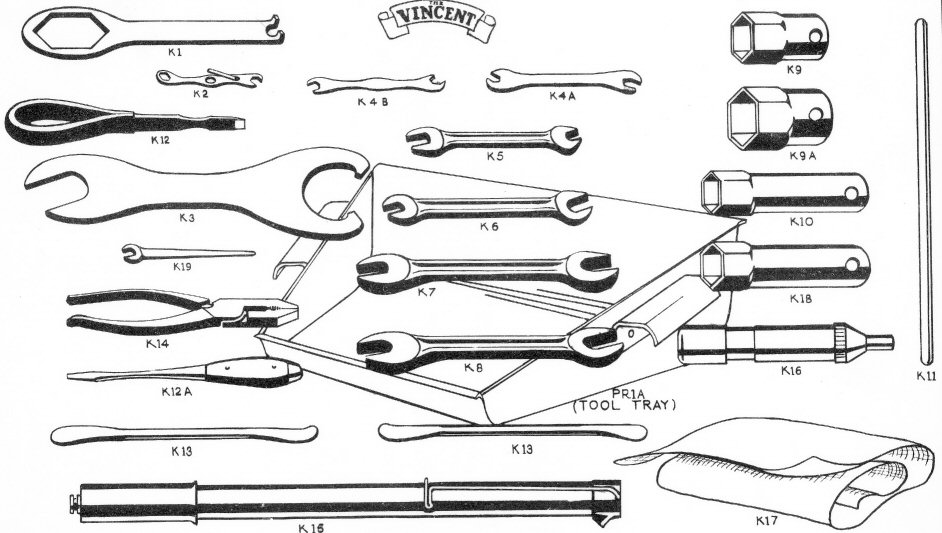

Vincent Comet, Black Shadow, Rapide Tool resource


Tool
Description
notes
graphics
K1
Cap and Tube nut spanner.
stamped "K1". Original very early spanners were 6 sided hex and unpainted.
Later issue and repro "K1" are 12 sided and may be painted red, also repro are too large around the hex.

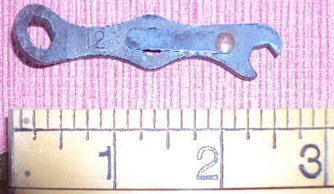

K2
Magneto spanner
Magneto center nut closed spanner with points nuts open spanner and .012" blade, stamped"12", 65mm long
K3
Exhaust and column spanner
stamped "K3"

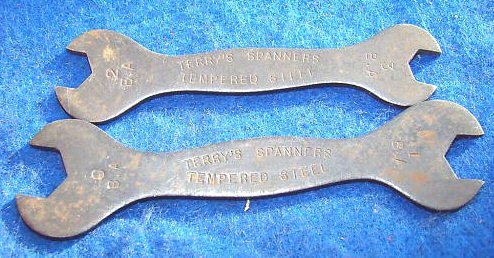

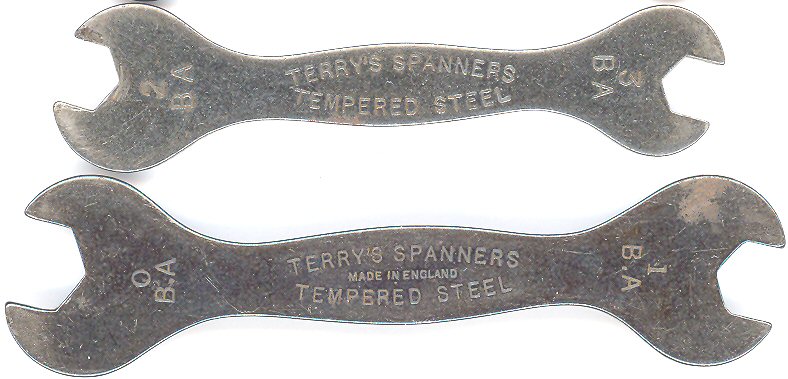

K4A
0-1BA open spanner
Terry's Spanners, tempered steel, made in England, approximately 2.42mm thick

K4B
2-3BA open spanner
Terry's Spanners, tempered steel, made in England, approximately 2.42mm thick

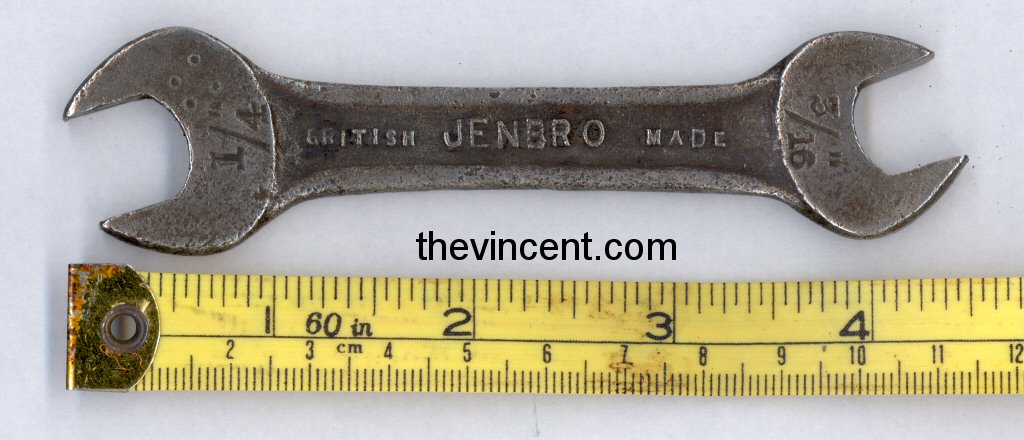

K5
3/16"-" B.S.W. open spanner
BRITISH JENBRO MADE

K6
"-5/16" B.S.W. open spanner
BRITISH JENBRO MADE

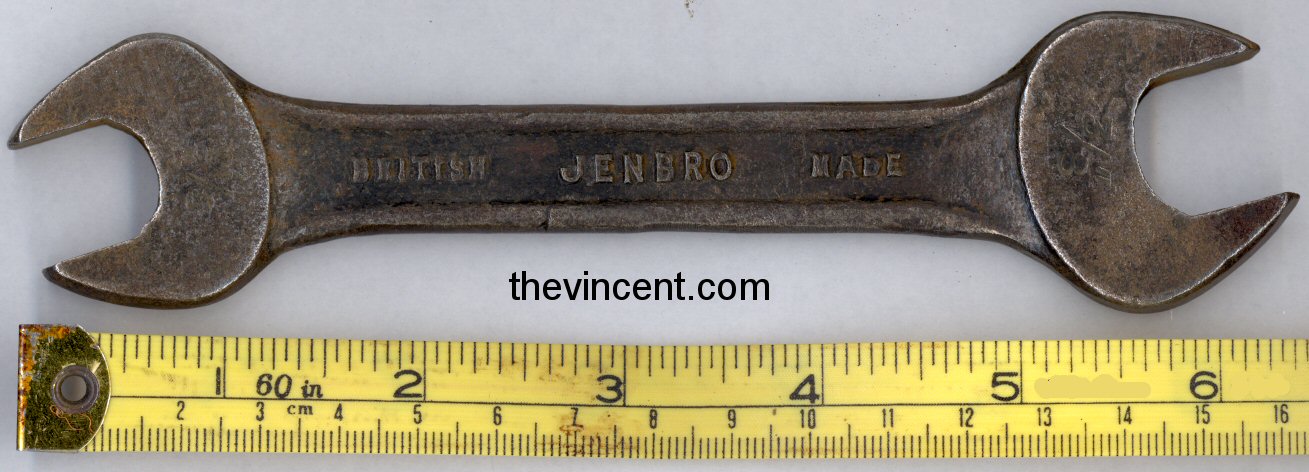

K7
5/16"-3/8" B.S.W. open spanner
BRITISH JENBRO MADE
K8
3/8"-7/16" B.S.W. open spanner
BRITISH JENBRO MADE
K9
1.100" Hexagon box spanner
BRITISH JENBRO MADE
K9A
1.300" Hexagon box spanner
BRITISH JENBRO MADE
K10
.820" Hexagon plug spanner
BRITISH JENBRO MADE
K11
Tommy bar
steel rod, 9.6mm dia, length: 6"

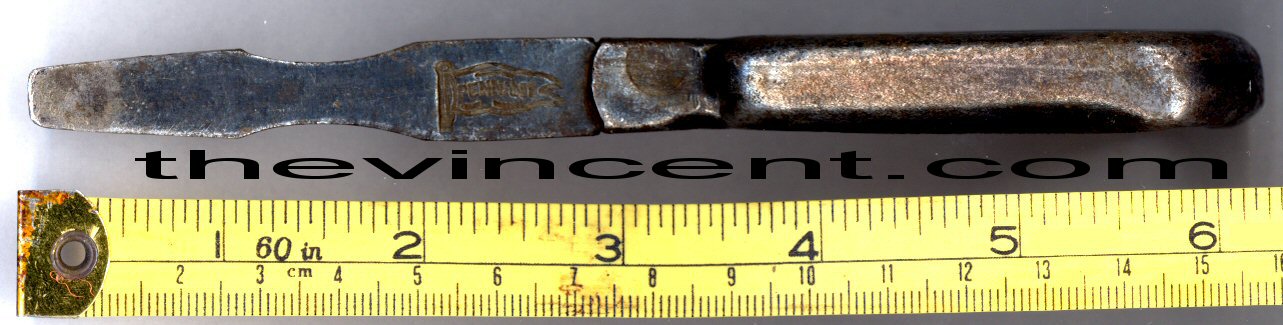

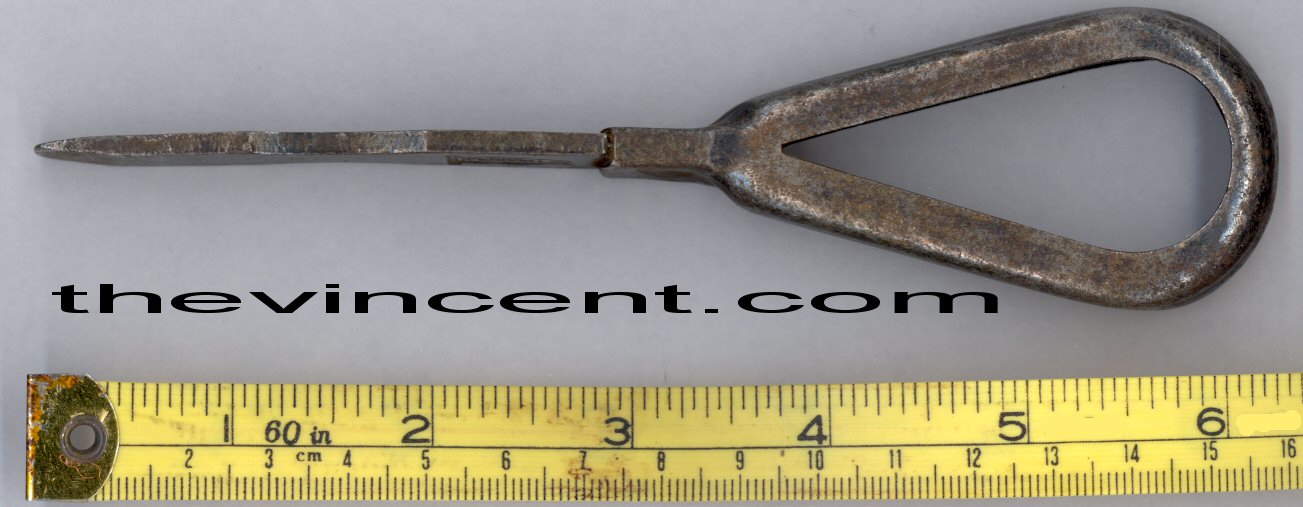

K12
Screwdriver
Pennant 6", stamped steel construction, loop handle, stamped with Pennant logo, Cad or black oxide finish, different shaped handles typically a round loop

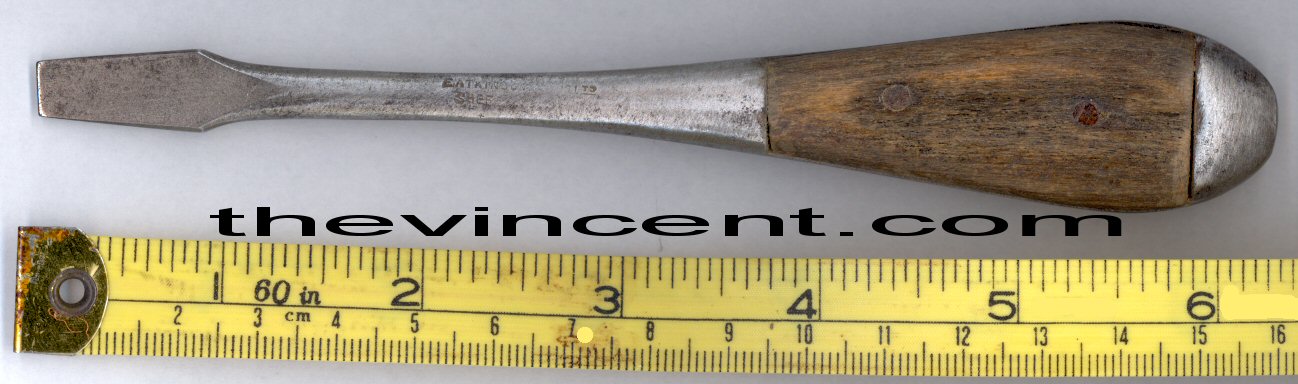

K12A
Screwdriver
Wooden handle, common period construction, some say Atkinson was official, other say just stamped British made or similar.
This example is faintly stamped
E ATKINSON & SONS Ltd
Sheff.......
The distinguishing character of this Atkinson screwdriver is the square cut ends of the wood.

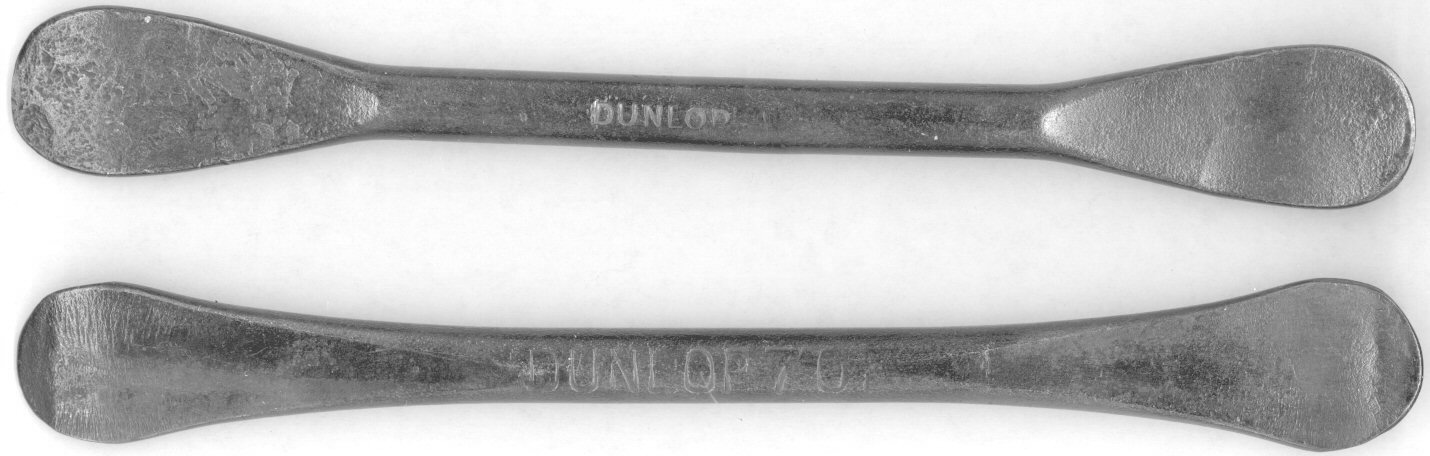

K13
Tyre lever
7" length, stamped DUNLOP, MADE IN ENGLAND, DUNLOP 7" OA, MADE IN ENGLAND 273 or ?

K14
Combination pliers
stamped JENBRO, 6" length,

K15
Tyre inflator
Blumel's, Britton,

K16
Grease gun
brass, stamped or cast Tecalemit, 23mm OD, 145mm length

K17
Shop cloth


K18
.920"Hexagon box spanner
BRITISH JENBRO MADE

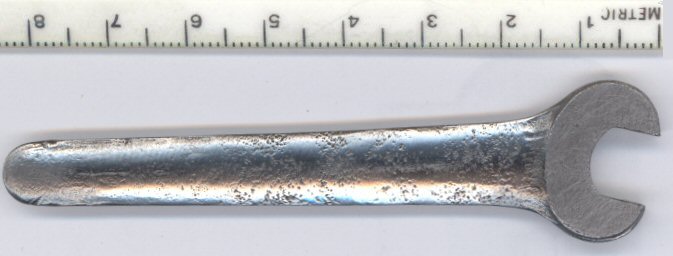

K19
1/8" B.S.W. open spanner
83mm length, unmarked









PR1A
Tool tray
CometVincentToolTrayPR1A.html

resource links -
Spanner jaw sizes
